Cupcakes and muffins are cakes make in paper cups inside baking trays or in self-supporting cups. Cupcakes can have several different shapes based upon the cup.
CAF series is the general name of all the cake machines. It include single machines and combination machines for cake.
 Cupcakes and Muffins |  Muffins |  Cupcake Cups |
Oil Sprayer & Dispenser & Depositor 3 IN 1 Machine
This machine is applied to the production of variety of cakes, cupcake, 1 color bear cake, custard cake, etc. The dispenser is for making cupcake, while the oil sprayer is for making cakes without paper cups. Choose the machines according to the kind of cake production.
 Oil Sprayer & Dispenser & Depositor 3 IN 1 Machine |  Oil Sprayer & Dispenser & Depositor |
Technical Specifications:
| Running Speed | 15-20 times/min |
| Oil Spraying Quantity | 0.2-0.6g/time, adjustable |
| Dough Depositing Quantity | 10-100g/time, adjustable |
| Voltage and Frequency | 3ph, 380V, 50Hz |
| Power | 11kW |
| Air pressure | 0.6-0.8MPa |
| Maximum air consumption | 1.5m 3/min (external gas source) |
| Dimension(L*W*H) | 4500*1450*1800mm |

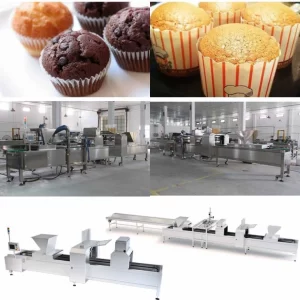

Oil Sprayer & Dispenser & Depositor & Injector & Depanner 5 IN 1 Machine
This machine is applied to the production of different cakes, such as cupcake and custard cake. Choose either oil sprayer or dispenser first, loading trays on the conveyor, they will automatically step-walks forward for oil spraying or paper cup loading, and then dough depositing. Then workers take the trays into rotary oven for baking. After baking, the workers load the trays with baked cakes on the machine for cream injection and depanning. After depanning, the empty trays move to oil sprayer for another circular production.
 Oil Sprayer & Dispenser & Depositor & Injector & Depanner 5 IN 1 Machine |  Oil Sprayer & Dispenser & Depositor & Injector & Depanner |
Technical Specifications:
| Running Speed | 3-6 trays/min |
| Oil Spraying Quantity(Max) | 0.2-0.6g/time, adjustable |
| Dough Depositing Quantity | 10-100g/time, adjustable |
| Injecting Quantity | 2-20g/time, adjustable |
| Depanning Speed | 4-6 times/min9(1-2 trays/ time) |
| Voltage and Frequency | 3ph, 380V, 50Hz |
| Power | 16kW |
| Air pressure | 0.6-0.8MPa |
| Maximum air consumption | 2m3/min (external gas source) |
| Dimension(L*W*H) | 8000*2400*1800mm |
