Product Details

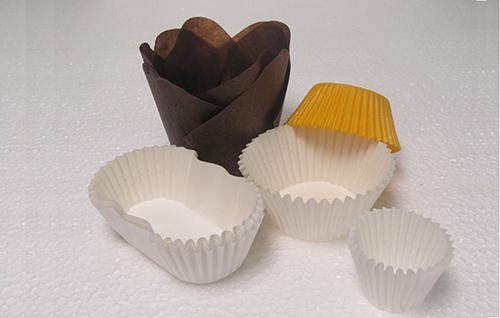

Cupcakes and muffins are cakes make in paper cups inside baking trays or in self-supporting cups. Cupcakes can have several different shapes based upon the cup.

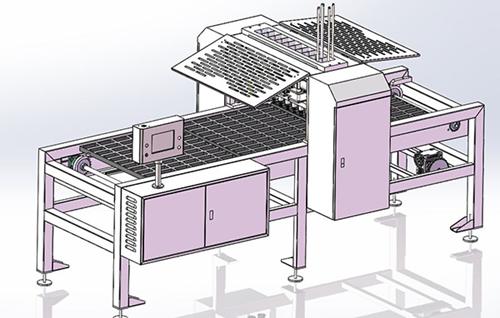

DIA-Dispenser
This dispenser model DIA is for placement soft paper cups. It is using air blow system to separate the cups inside the feeders and place them on the tray. The deposit heads are designed exactly according to the size and shape of the cups. They are interchangeable so that one machine can fits for different cups.
Muffin Dispenser
Technical Specifications:
| Model | DIA |
| Dispensing speed | 15-20 times/min |
| Voltage | 3ph, 380V, 50Hz |
| Power | 7.5kW |
| Air pressure | 0.6-0.8MPa |
| Maximum air consumption | 0.2m3/min (external gas source) |
| Dimension(L*W*H) | 2700*1450*1800mm |
DIB-Dispenser
This cup denester model DIB is for placement hard paper cups, coated paper cups and plastic blisters. It is using vacuum generator to suck the cups and then place cups down. It can be a single machine or connect to the existing production line.
Technical Specifications:
| Model | DIB |
| Dispensing speed | 15-20 times/min |
| Voltage | 3ph, 380V, 50Hz |
| Power | 3kW |
| Air pressure | 0.6-0.8MPa |
| Maximum air consumption | 1m3/min (external gas source) |
| Dimension(L*W*H) | 2700*1450*1800mm |
