Soap Automatic Packing Machine With Auto Feeder

Food & Beverage Processing Packaging Machinery Supplier

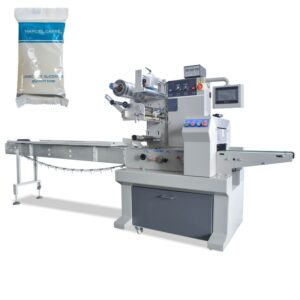

( Upgraded Version ) Horizontal Flow Wrapper Packaging Machine suitable for packaging bar soaps, hotel soaps, etc.

Product Details

Features:

* For Stable Performance: Three servo controller, upgradable PLC system, self-failure diagnosis, double encoder.

* For Easy Operation: Touch screen monitor, independant temperature PID controller,

* For Adapability: one set of machine can be applicated to different kind of product via optional devices, such as air-filling device, feeding line, date printer, etc.

Packaging Sample:

Application:

Food: bread, biscuits, cookies, tortillas, moon cake, several sausage in a bag, instant noodles, beef jerky, egg roll, etc.

Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers, etc.

Hardwares: hinge, stainless steel pipe, bearings , screw, nuts and washer, etc

Hotel Supplies: soap, disposable comb, tooth paste and brush in one set.

Stationary: pencil, eraser, notebook, paper card, adhensive tape, etc.

Electric Products: battery, usb cable, earphone, user manual and accessories in one set.

Medical: face mask, glove, gauze, capsule, disposable syringe, etc.

Daily use: plastic knife, fork, plate, sponge cloth, stainless steel scourer, scrubber, glass, etc.

Specification:

ModelVT-110VT-160VT-210VT-280VT-330
Film WidthMax.240mmMax.340mmMax.440mmMax.580mmMax.680mm
Bag Length65-400mm60-400mm95-500mm150-550mm150-550mm
Bag Width30-110mm30-160mm50-210mm60-280mm80-330mm
Products HighMax.55mmMax.55mmMax.85mmMax.110mmMax.110mm
Film Roll DiameterMax.380mmMax.380mmMax.380mmMax.380mmMax.380mm
Packing Speed40-300bag/min40-200bag/min40-150bag/min20-120bag/min20-120bag/min
Power220V 50/60Hz 2.6KW220V 50/60Hz 2.6KW220V 50/60Hz 3KW220V 50/60Hz 3.5KW220V 50/60Hz 3.5KW
Machine Size (L*W*H)mm3600*670*14703600*745*14703820*820*14704000*960*15504000*1000*1550
Machine WeightAbout 500kgAbout 580kgAbout 650kgAbout 700kgAbout 750kg

Optional Devices:

1. Lateral feed device,

2. Straight feed device,

3. Belt material conveyor,

4. End sealing auxiliary conveyor,

5. Auxiliary material feeding device,

6. Materia cut prevent device,

7. Perforating device,

8. Angle folding device,

9. Date Printer,

10. Labelling machine
