JUICE TEA DRINKS PRODUCTION LINE
Use: juice drinks, fruit juice, tea drinks
Product Description:

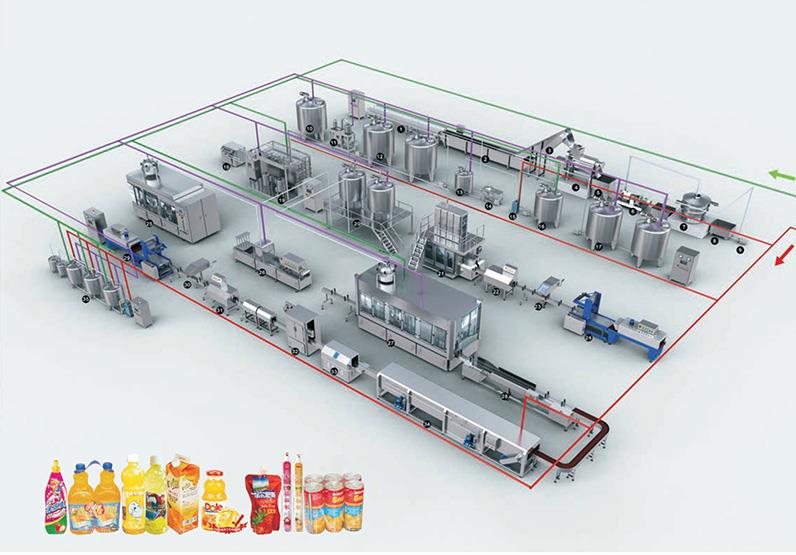

Fruit juice production line is composed of water powder mixer, srup filter, duplex filter, vacuum degasser.
UHT sterilizer and homogenizer and so on. The raw material could be fresh fruit or concentrated juice.it can be used for making orange juice production line, apple juice production line, peach juice production line, and cherry juice production line etc.

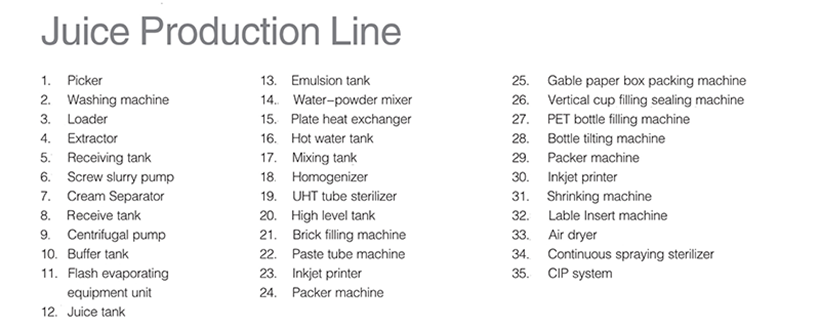

Machines included in this juice production line:
– Bottle blow moulding machine;
– Bottle unscrambler;
– Water treatment;
– Beverage processing system;
– Air conveyor;
– Filling machine with rinsing, filling and capping;
– Lamp inspection;
– Bottle drier;
– Ink jet printer;
– Labeling machine;
– Shrinking machine;
– Conveying system;
– Cooling tunnel and bottle warm tunnel.

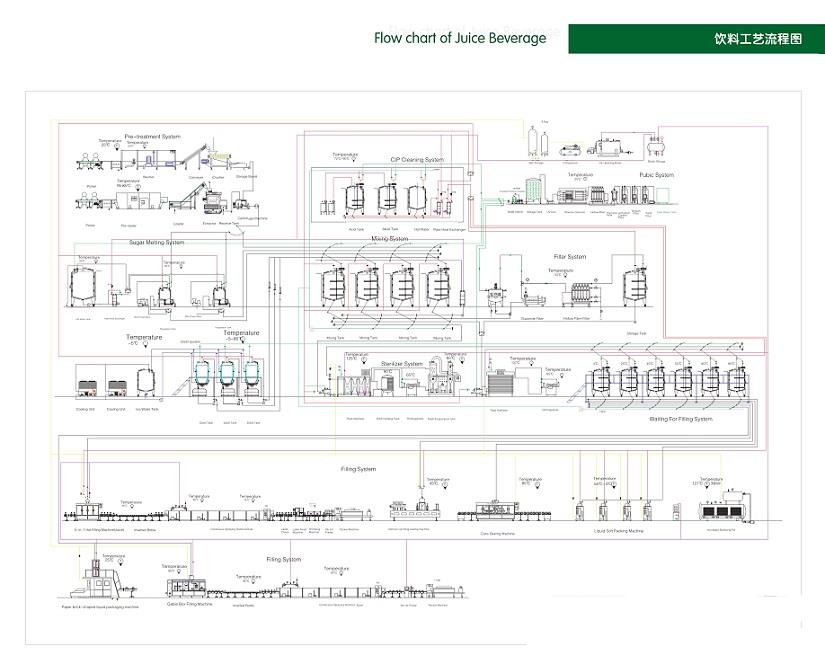

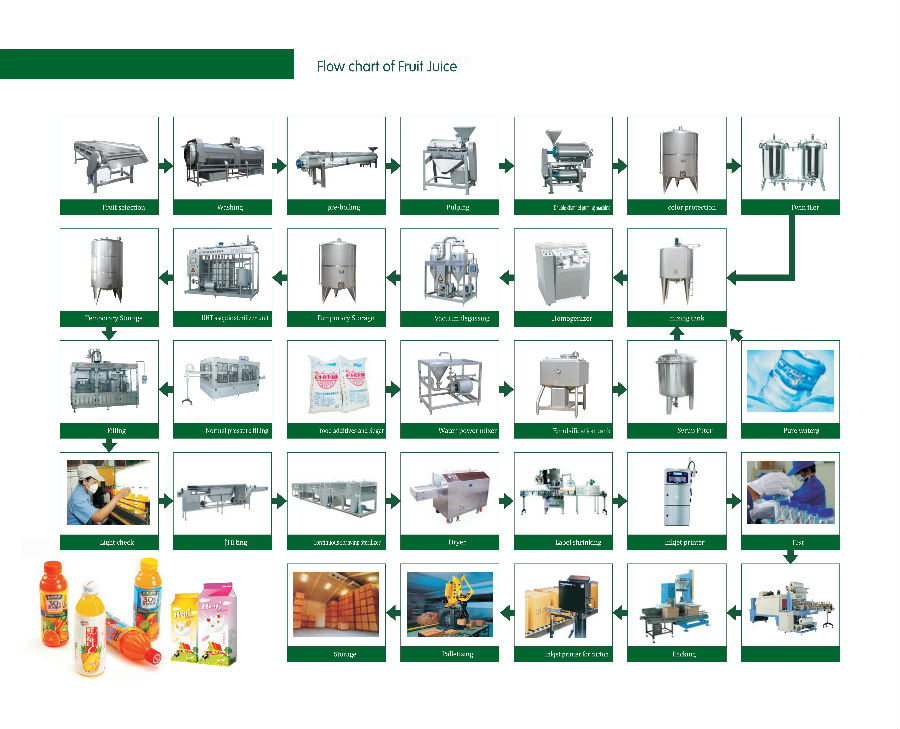

Complete fruit juice processing machinery procedure:
1. Water treatment system
Raw water → raw water tank → raw water high pressure pump → multi-medium filter (Quartz sand filter) → active carbon filter → sodium ion exchanger → water pump → precision filter → RO device → ozone device → pure water tank
Remark: Supply water for juice blending tank and washing-filling-capping units
2. Juice preparation making treatment system
Sugar melting tank → sugar filter → Juice blending tank → juice homogenizer → vacuum De-aerater → storage tank → UHT ultrahigh temperature instant Sterilizer → heating and cooling tank
3. Filling and packing line
Bottle mould blowing machine → bottle unscrambler → air conveyor → auto washing-bottling-capping units (monobloc 3-in-1 machine) → inverted bottle sterilizer → bottle cooling machine → jet printer → auto hot shrink labeling machine → hot shrink label tunnel → bottles plastic shrink packing machine bottle dryer → jet printer → auto hot shrink labeling machine → hot shrink label tunnel → auto film shrink wrapping packager → stacker by worker
